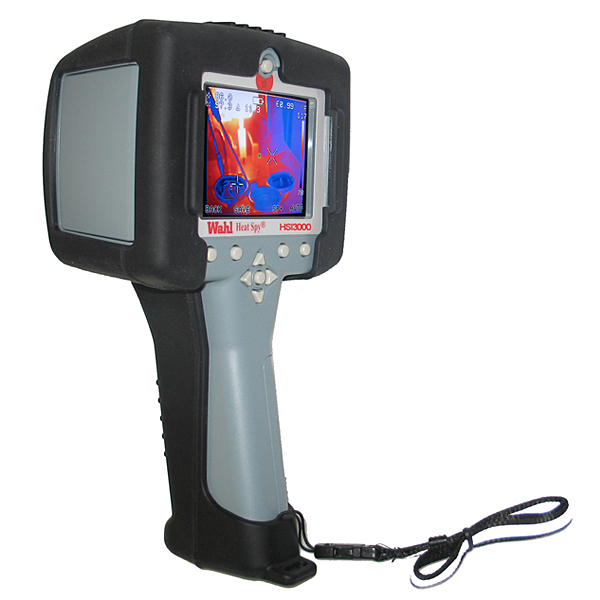

Wahl Heat Spy Imager
Thermal imaging is the best non-invasive, non-destructive method for diagnostics of potential problems without damage to property, danger to person, or shut down of process. Wahl Heat Spy® HSI3000 thermal imaging cameras give you the most accurate, clear, high resolution pictures, with the ability to modify and analyze images in a complete detailed report.
Features
* Real Time Image and Temperature Measurement display
* Crisp High Resolution Images
* Large 3 1/2" LCD Display with LED backlight.
* Fully Radiometric - Measures the Temperature of every Pixel
* Multiple Temperature Measurements
* Image Browser with full image adjustment
* Includes Software, SD card & Card Reader
* Two measurement cursors, movable anywhere in the image
* Temperature and Differential Temperature Measurement
* Download images to PC with the supplied SD card reader for Post analysis
* Images may be captured directly to a PC using the USB interface
Focus: Manual
Spectral Response: 8µm to 14µm
Detector: 160 x 120 pixels uncooled microbolometer
Image Storage: Up to 2000 images on supplied 256 MG SD Card (or MMC)
Display: 3 1/2" Color LCD with LED Backlight, 4 color palettes
Laser Pointer: Built in Class II Laser highlights with central measurement area
Radiometry: Two movable temperature measurement cursors, Delta temperature measurement
Emissivity Correction: User selectable 0.2 to 1.0 in steps of 0.01 with reflected ambient temperature compensation
Operating Range: 5 to 113F
Storage Range: HSI3000: -4 to 150F; HSI3002 & HSI3003: 20 to 158F
Humidity: 10% to 90% non-condensing
Power: Lithium field replaceable, rechargeable batteries with up to 6 hours continuous operation
AC Operation: AC Adapter Included
Interfaces: USB Type B
Housing: Impact Resistant Plastic
Mounting: Tripod and Hand Held
Included Accessories
* Report Now! Software
* Rugged, Waterproof, Carrying Case
* Wrist Strap
* Battery
* AC Adapter
* User Manual
* Software CD
* USB Cable
* SD Card
* SD Card Reader
* HSI3003 Light Shade
