Straight-Shank, Socket-Weld Thermowells

<< Previous in Thermocouples Next in Thermocouples >>

Price: Call for pricing
Item Is In Stock
Item Number: TW-11
Manufacturer: PYROMATION, INC. (Beyond Measure!)
Straight-Shank, Socket-Weld Thermowells

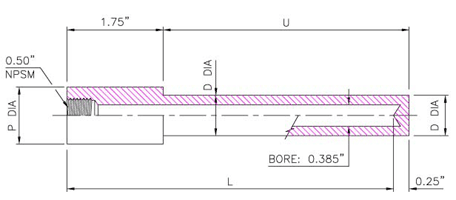

Straight-Shank, Socket-Weld Thermowells are available in a variety of materials, process connection sizes, lengths, and optional lagging extensions. Thermowell specifications should be determined based on process conditions which include strength, temperature, pressure and corrosion-resistance requirements. The Straight-Shank Socket-Weld is designed to be used with a 3000 class weld-o-let which allows the thermowell to be welded permanently into the process. They are designed with a standard 0.260" or 0.385" bore diameter to accommodate sensing elements with either a 0.252" or 0.377" maximum diameter, respectively. These wells are available as separate components or as part of complete sensor assemblies.


CALL FOR PRICING and ORDERING! Phone: (610) 446-6600
CLICK ON IMAGE BELOW TO SEE ORDER OPTIONS CALL WITH ANY QUESTIONS!







**24 hour- 72 hour Delivery Available**
