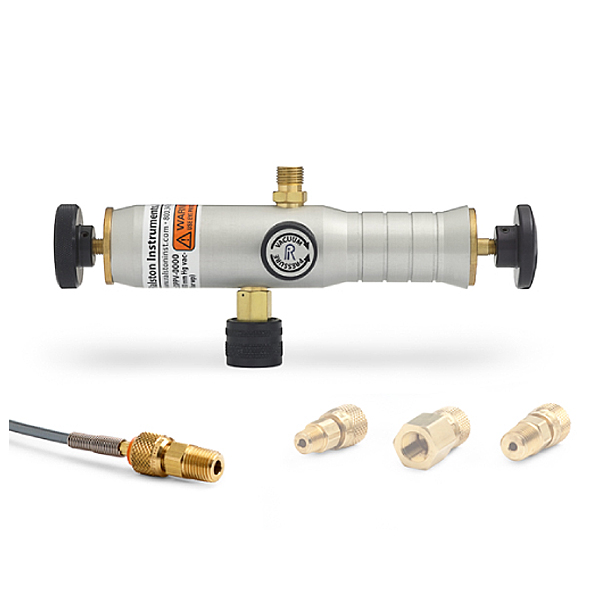

Ralston Pneumatic Pressure/ Vacuum Hand Pumps (direct acting)
|
|
Price: From $414.30 to $429.70
Manufacturer: RALSTON
Mfr. Part Number: DPPV series
Choose Your Model
| |
|
Pneumatic Pressure/Vacuum Hand Pumps (direct acting)
The ideal solution for either differenctial pressure or vacuum calibration using a precision test gauge or pressure calibrator as the pressure reference.
Features:
-
Generate either 100psi pressure or -25Hg vacuum with the same pump
-
Unique design allows the user to convert from pressure to vacuum by simply twisting a knob, even with gloves on
-
Two outlet ports allow connection to reference pressure gauge or pressure calibrator as well as device under test, thus eliminating a tee
-
Large volume fine adjustment piston provides precise control, even at very low pressures
-
Precisely vent pressure with soft seated bleed valve
-
Low volume Quick-test hose, gauge adapter and process connection can be attached to pump without thread sealant or a wrench
-
Rugged, all metal construction reduces pressure changes due to temperature fluctuations
-
Made in USA
Pump connection type: National Pipe Thread (NPT)
Maximum pressure: 100 psi
Maximum vacuum: -25 Hg
Style: Direct acting
Pressure Media: Air
Fine adjust resolution: +-.001psi
Outlet port 1: Male Quick-test (QTHA-3SBO)
Outlet port 2: Male Quick-test with cap and chain (QTFT-3SBO)
Calibration Hose: 3ft long (QTQT-HOS-3)
Process connection: 1/4" male NPT (QTHA-2MBO)
Construction: Anodized aluminum, brass, plated steel
Seal material: Buna-N, Teflon, Delrin |
|
|
