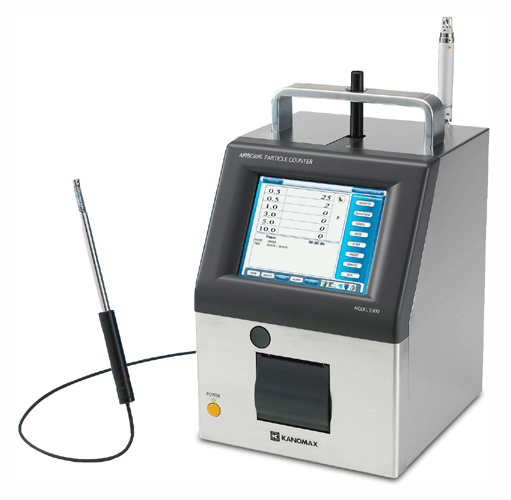

Kanomax Portable Particle Counter Model 3900
|
|
Item Is In Stock
|
The Model 3900 is a CE certified 6-Channel Portable Laser Particle Counter with a high flow rate of 1.0 cfm. The Model 3900 has a large color touch screen and its user-friendly interface makes operation easy. In addition the Model 3900 offers multi-parameter measurements including airflow, air temperature, humidity, and differential pressure. It also includes a multi-standard operation mode to ensure compliance with industry standards, such as ISO 14644-1, Federal Standard 209E, British Standard 5295 and EC GMP.
Applications
- Cleanroom verification
- Clean Bench verification
- Filter Testing
- Facility Certification
- Food Process Investigation
- Hospital Surgical Room
Features
- Simultaneous measurements of 6 particle sizes
- 28.3 L/min (1.0 cfm) Flow Rate
- 21 CFR Part 11 compliance: password authentication and management, secure data, and audit trails
- PC software allows Remote control, Real-time
- All Stainless Body
Benefits
- Large touch screen LCD display
- Small Footprint
- Multi-parameter: Particle, Airflow, Temperature, Humidity, Differential Pressure
- Mulit-standard mode: ISO 14644, FS 209E, BS 5295, EC GMP
Optional Probes
|
|
|
Air Velocity Probe
|
Temperature and Relative Humidity Probe
|
Air Velocity range: 0 to 197 fpm (0 to 1.0m/s)
|
Temperature Range: 32.0 to 122.0F (0.0 to 50.0C)
R/H Range: 3.0 to 98.0%RH
|
|
|
Specifications
|
Channel Sizes
|
0.3 um, 0.5 um, 1.0 um, 3.0 um, 5.0um, 10.0um
|
| Flow Rate
|
1.0 cfm (28.3 l/min)
|
| Light Source
|
Laser Diode
|
| Counting Efficiency
|
20 +/- 20% (ISO 21501-4)
|
| Zero Count
|
Less than 1 count / 5 minutes (ISO 21501-4)
|
Spurious Count
|
0.3 count/cf or less
|
| Sampling Time
|
1 sec to 23 hrs 59 min 59 sec
|
Sampling Frequency
|
1 to 9,999 while in repeat mode
|
Location Labels
|
0 to 999 appears on display and printout
|
| Display
|
LCD: 6.4 inch color touch screen
|
| Printer
|
Built in (compatible with Dust-free paper)
|
| Interface
|
Ethernet, USB
|
Data Storage
|
5,000 measurement data
|
| Power
|
AC Adapter
|
100 - 240VAC, 50 to 60 Hz
|
| Battery
|
Removable Li-ion
|
Operating Time
|
4 hours continuous operation with Li-ion Battery
|
| Operating Environment
|
50 to 104F (10 to 40C)
|
| Dimensions
|
W 4.5 x D 2.8 x H 8.5 inch (115 x 70 x 211 mm)
|
| Weight
|
17.5 lbs (8 kg)
|
| Accessories
|
Operation Manual, Isokinetic Probe, Power Cable, Battery&Charger
Printer Paper, Zero Filter, USB Cable, Data Download Software (WIndows)
|
| Options
|
Carrying Case, Spare Battery, Battery Charger, Air Velocity Probe
Temperature/Relative Humidity Probe, Differential Pressure Sensor
|
|
|
Optional Probe 0842 for 3886/3900 Particle Counter
|
Optional Probe for 3886/3900 Particle Counter
|
Spare Li-ion Battery for 3900 Particle Counter
|
|
|
