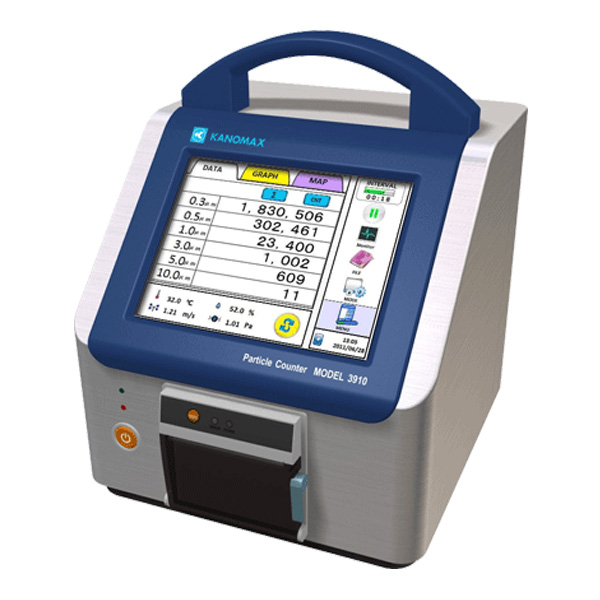

Kanomax Portable Laser Particle Counter Model 3910
|
|
Item Is In Stock
Item Number: 3910
Options
Optional Add-Ons / Accessories
|
Kanomax Portable Laser Particle Counter Model 3910
50 LPM Laser Particle Counter
| Applications |
- Food Process Investigation
|
|
| Features |
- 50 L/min (1.77 cfm) Flow Rate
- Compliant with ISO 21501-4 and 21 CFR Part 11
- Simultaneous measurements of 6 particle sizes
- Store up to 10,000 Measurements
- Stainless Enclosure
- 2 Year Warranty
|
Benefits |
- Featherlight with an ultra-small footprint
- Large Color Touch Screen
- Multi-parameter: Particle, Airflow, Temperature, Humidity, Differential Pressure
- Mulit-standard mode: ISO 14644, FS 209E, BS 5295, EC GMP
|
|
|
| Optional Probe |
| Model 6531-2G-P |
|
| Probe Type |
Uni-Directional |
| Air Velocity |
20 to 6000 fpm (0.10 to 30 m/s) |
Temperature
|
32 to 140°F (0 to 60°C) |
Relative Humidity
|
2.0 to 98.0 %RH |
|
|
| Specifications |
| Channel Sizes |
0.3 um, 0.5 um, 1.0 um, 3.0 um, 5.0um, 10.0um |
| Flow Rate |
1.77 cfm (50 L/min) |
| Light Source |
Laser Diode
|
| Counting Efficiency |
50% @ 0.3 um
|
| Zero Count |
Less than 1 count / 5 minutes
|
| Interface |
Ethernet, RS485
|
| Data Storage |
10,000 measurement data |
| Optional Sensor |
Air Velocity, Temperature, Humidity / Differential Pressure |
| Power |
AC Adapter |
AC 100 - 240 V |
| Battery |
Li-ion Battery |
| Dimensions |
W 7.9 x D 7.9 x H 8.1 inch |
| Weight |
14.2 lbs (6.44 kg) |
| Accessories |
Quick-start guide, AC adapter, zero filter, Isokinetic probe with 79 inch (2m) tubing, inlet nozzle, data processing software, memory card, 2 rolls of cleanroom-grade printer paper, 1 x Li-ion battery and calibration certificate |
| Options |
Carrying Case, Spare Battery, Battery Charger, Air Velocity, Temperature, Relative HumidityProbe , Differential Pressure Sensor
|
|
|
|
|
