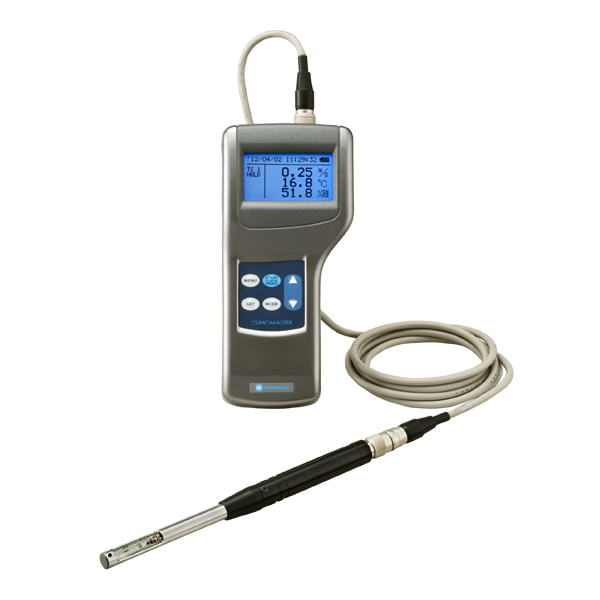

Kanomax Climomaster A531
|
|
Item Is In Stock
|
Kanomax Climomaster is a multi-function thermal anemometer. It is suitable for many HVAC applications, such as facility ventilation, environmental measurements, and HVAC balancing. This handy and light-weight unit is the most accurate and repeatable hot-wire anemometer in the industry.
Applications
- HVAC Ventilation Testing and Balancing
- Laboratory Control
- Fume Hood Performance Testing
- IAQ Investigation
- Industrial Testing
Features
- Probe Compatibility feature allows you to have spare probe.
- The world's most accurate handheld hot-wire anemometer in its class.
- Robust design.
- Detachable probe.
- Automatic Flow Rate Calculation function.
- RS232C terminal for data logging.
- Stores up to 1500 measurement data.
- Differential Pressure available as an option.
Benefits
- One probe measures air velocity, air temperature, relative humidity, and airflow rate simultaneously.
- 5 different detachable probe available: low air velocity measurement, omni-directivity measurement.
- If you have more than one unit, detachable probe allows you to share the main unit or the probe.
- User can control Climomaster by using Anemomaster Measuring Software. Real-time graphic and spread sheet output.
Specifications
Model
|
A531
|
A541
|
A542
|
A533
|
A543
|
| Air Velocity
|
Range
|
20 to 6000 fpm (0.1 to 30 m/s)
|
10 to 1000 fpm (0.05 to 5 m/s)
|
| Accuracy
|
+/- 2% of reading or +/- 3 fpm, whichever is greater
|
| Air Temperature
|
Range
|
32 to 140 F (0 - 60 C)
|
| Accuracy
|
+/- 1 F (+/- 0.5 C)
|
Relative Humidity
|
Range
|
2 to 98 %RH (Model A531, A533)
|
| Accuracy
|
+/- 2 %RH
|
Differential Pressure (Option)
|
Range
|
-5 to +5 kPa
|
| Accuracy
|
+/- 3% of reading +0.01 kPa
|
Output
|
Digital
|
RS232C
|
Analog
|
DC 0 to 1 V
|
Power Supply
|
6 x AA Batteries / AC Adapter (100 to 240 V)
|
Weight
|
0.9 lbs (400 g)
|
| Accessories
|
Carrying Case, Operation Manual, AA batteries, Probe Cable
|
| Options
|
Spare Probe, Analog Output, Pressure Sensor, Extention Rod Printer, Printer Cable, PC Communcation Cable, Windows Software AC Adapter
|

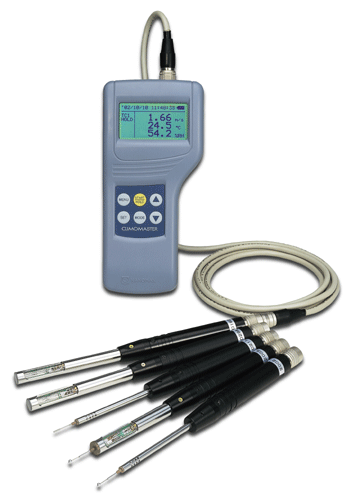

Probe Selection Guide
Model
|
Standard Probe
|
Measuring Range (fpm)
|
Probe Type
|
Directivity
|
Velocity & Temprature
|
Relative Humidity
|
A531
|
A531-01
|
20 to 6000
|
Rod
|
Mono
|
O
|
O
|
A541
|
A541-01
|
20 to 6000
|
Rod
|
Mono
|
O
|
x
|
A542
|
A542-01
|
20 to 6000
|
Needle
|
Omni
|
O
|
x
|
A533
|
A533-01
|
10 to 1000
|
Spherical
|
Omni
|
O
|
O
|
A543
|
A543-01
|
10 to 1000
|
Spherical
|
Omni
|
O
|
x
|
|
|
|
