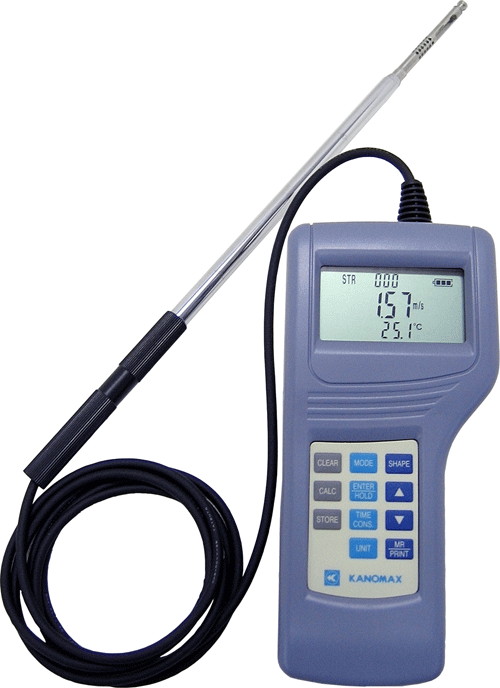

Kanomax Anemomaster Model A044
|
|
Item Is In Stock
|
Multi-function Hot-wire Anemometer
Applications
- HVAC Testing
- IAQ Investigations
- Industrial Hygiene
- Filter Face Air Velocity Measurement
- Facility Certification
- Cleanroom Study
Features
- Single Probe capable of measuring Air velocity and Temperature simultaneously
- Telescopic Straight and Articulating Probe
- Data Loggin Function
- Highly Visible LCD
- Standard RS232 and optional Analog outputs
Benefits
- Data Logging Function allows user to review the measurement on-screen, print or download to PC.
- Articulating probe for various applications.
- Telescopic probe for hard-to-reach area and in-duct measurements
|
Air Velocity Probe
|
|
|
|
| Straight Probe for A031 and A041
|
Articulating Probe for A034 and A044
|
|
Length: 39.4in.(100 cm) - Telescopic
Diamter of Tip: 0.236in. (6.0mm)
Diameter of Base: 0.472in.(12.0mm)
|
Length: 39.4in.(100 cm) - Telescopic
Diamter of Tip: 0.236in. (6.0mm)
Diameter of Base: 0.472in.(12.0mm)
Articulating section length: 3.543in.(90.0mm)
|
|
Specifications
|
Air Velocity
|
Range
|
20 to 6,000 FPM (0.1 to 30 m/s)
|
Accuracy
|
+/- 2.0 % of reading
|
Resolution
|
1 FPM or 0.01 m/s (0 to 9.99 m/s), 0.1 m/s (10 to 30 m/s)
|
Volumetric
Flowrate
|
Imperial
|
9031 CFM (at 20 FPM)
2,709,360 CFM (at 6000 FPM)
|
Metric
|
2,341 m3/s (at 0.1 m/s)
702,270 m3/s (at 30.0 m/s)
|
Temperature
|
Range
|
-4 to 140F (-20 to 60C)
|
Accuracy
|
+/- 1F or +/- 0.5C
|
| Resolution
|
0.1F or 0.1C
|
Differential
Pressure
(A041, A044)
|
Range
|
-5.00 to +5.00 KPa
|
| Accuracy
|
+/- 3.0 % of reading +/- 0.01 KPa
|
| Resolution
|
0.01 KPa
|
Power Supply
|
6 x AA Alkaline Batteries or AC Adapter
|
| Accessories
|
Carrying Case, Operation Manual, Batteries, AC adapter
PC Comm. Cable, Comm. Software (for WIndows)
|
| Options
|
Analog Output, Printer, Printer Cable, Rolled Paper, AC adapter for Printer
|
|
|
|
|
