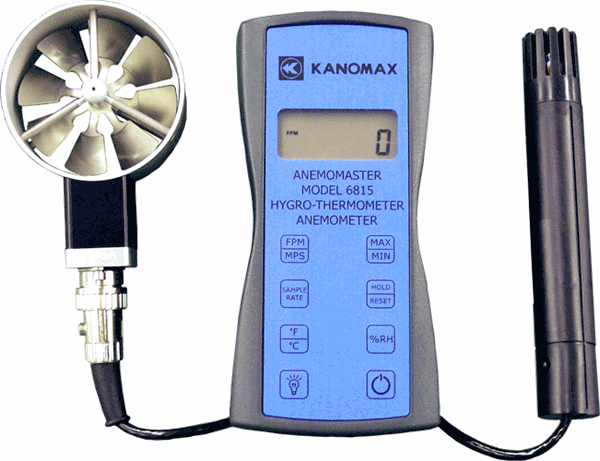

Kanomax Anemomaster Model 6815
|
|
Item Is In Stock
|
Anemomaster
Rotating Vane Anemometer
Applications
- HVAC Ventilation and Balancing
- Manufacturing Control
- Laboratory Control
- IAQ Investigation
- Industrial Hygiene Quality Control
- Flow Hood Monitoring
Features
- High Accuracy: +/- 1.0 % of reading
- 40 fpm of Air Velocity sensitivity
- Temp. Measurements from -22 to 212F
- Measure Relative Humidity from 5.0 to 95 %RH
- Analog voltage and PC Communication output option
- Rugged Metal Probe and Vane
- Protective Rubber Boot Option
Specifications
Air Velocity
|
Probe AP275
|
40 to 7800 FPM (0.2 to 40 m/s)
|
| Probe AP100
|
300 to 6800 FPM (1.5 to 34.5 m/s)
|
Accuracy
|
AP275: +/- 1.0 % of Reading +/- 1digit
AP100: +/- 0.25 % F.S. + 0.75 % of reading + 1digit
|
Resolution
|
1 FPM or 0.01 m/s
|
Temperature
|
Air Vel. Probe
|
-22 to 212F (-30 to 100C)
|
| Temp. Probe
|
-139 to 392F (-95 to 200C)
|
Accuracy
|
+/- 0.3C +/-0.2 % of Reading in C
|
| Resolution
|
0.1F or 0.1C (1F below -99.9F)
|
Relative
Humidity
|
Range
|
5.0 to 95.0 %RH
|
| Accuracy
|
+/- 2.0 %RH
|
| Resolution
|
0.1 %RH
|
| Display
|
0.5 inch LCD, 4 digits with LED Backlight
|
Operating Temperature
|
Instrument: 32 to 125F (0 to 50C)
Probe: -4 to 212F (-20 to 100C)
|
Power Supply
|
3 AA Alkaline Batteries
|
Operating Time (Battery)
|
Approx. 150 hours
|
Dimensions
|
Instrument
|
W 3.2 x D 1.5 x H 6.5 inch (82 x 38 x 165 mm)
|
Probe AP275
|
2.75 inch diameter
|
Probe AP100
|
1.00 inch diameter
|
| Accessories
|
1 x Rotating Vane Head (Your choice of AP275 or AP100)
Extension Rod with Handle Grip, Flexible Rod
3 x AA 1.5V Alkaline Batteries, Operation Manual, Carrying Case
|
| Options
|
Protective Rubber Boot and Splash-Proof Seal
USB Communications
RS232 Communications
Analog 0 ot 5V output
Additional Probe: APT275, APT100, APT100-LOW, AP100-LOW
Extra extension and/or flexible rods
Custom Cable Lengths
Immersion RTD Temperature Probe
Surface RTD Temperature Probe
Air RTD Temperature Probe
|
|
|
|
