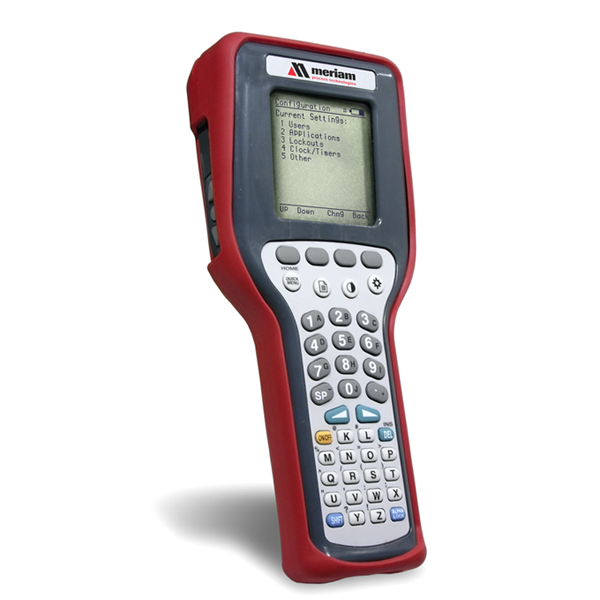

MFC 4150/4150X HART Communicator

The MFC 4150 HART® Communicator is the latest HART communicator from Meriam Process Technologies. HART field devices can be configured and trimmed using the MFC. The MFC is a full function HART Communicator with time-saving features that optimize commissioning, configuration and maintenance operations.

MFC 4150 supports all HART devices at the Universal and Common Practice command levels plus a large and growing list of devices at the Device Specific command level. View compatible field device list by going to www.meriam.com and selecting Available DOFs.

The MFC 4150 is for general purpose (non-hazardous environments), while the MFC 4150X is Intrinsically Safe hazardous environments.

MFC 4150/4150X Advantages

• Quick start up and connect: 15 seconds!
• 60 hours battery life (w/o backlight)
• 28 hours battery life with backlight
• Update new device profiles and firmware from Meriam via the Internet – the MFC 4150 is never out of your hands
• Clone / Upload / Download configurations
• Off-line mode for editing / reviewing configurations
• Document and store 200 configurations
• 13-line, 128 x 128 graphic, backlit display
• Dongle coordinates AC power adapter and serial communications
• Full alpha-numeric keypad • Review / Edit on the fly
• Quick Menu short cuts for commonly used commands
• HART menu Home key • Dedicated text edit keys
• Programmable lock-out settings
• Contrast key for direct adjustment in any mode
• Elastic hand strap, adjustable shoulder strap and soft carrying case
• Left side thumb keys for one-handed navigation
