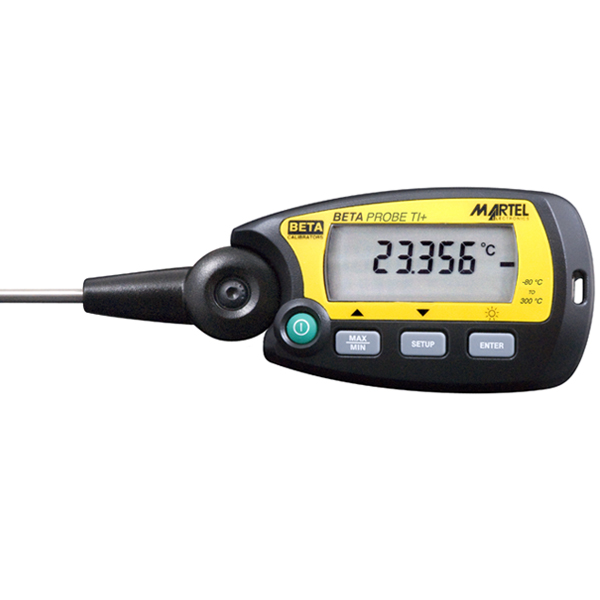

A single BetaProbe TI+ high precision digital thermometer can replace many liquid-in-glass (l-i-g) thermometers. It can also serve as a reference standard for other types of digital or analog temperature indicators. Plus, intrinsically safe certification means it can be used virtually anywhere.
Advanced Pressure Calibrator - BetaProbe TI+
BetaProbe TI+ General Features:
Wide range compared to L-I-G thermometers
Low total cost of ownership (TCO) due to simple recalibration procedure
High accuracy and resolution
CSA Intrinsically Safe
Fast response
Data logging with optional BetaLOG™ TI software
Temperature trend indicator
Rugged and reliable
EFI/RFI standard compliant
Long battery life
User configurable features

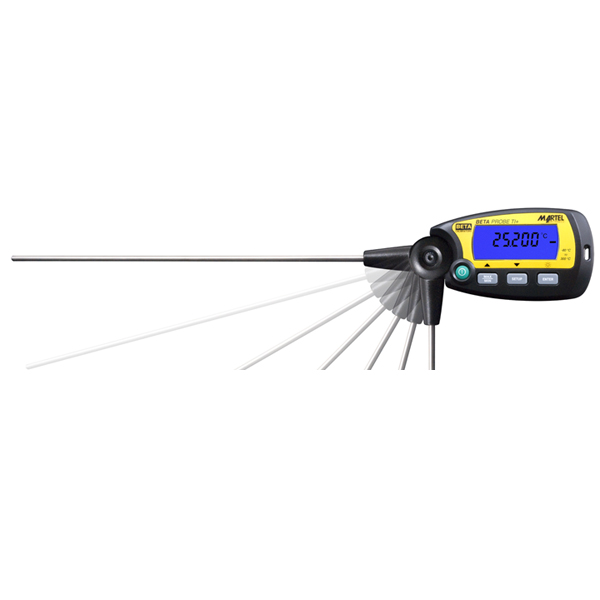

The integral 1/4" (6.35 mm) diameter probe houses a quick response thin film sensor for quickly acquiring highly accurate readings using minimal insertion depth. The integral probe also rotates through 90° for any angle reading of the display.
BetaProbe TI+ Specific Features: (23 ± 5°C unless noted)
Measurement Range:
BetaProbe TI+: -50°C to 300°C (-58°F to 572°F)
Probe Size:
BetaProbe TI+ (
1919877) 1/4" Diameter x 18" Length
Accuracy (1 year):
± 0.06°C (0.1°F)
Resolution:
Selectable (0.1, 0.01, 0.001) factory default is 0.001
Sample Rate:
User selectable 0.5/sec, 1/sec or 2/sec factory default is 1/sec
Operating Temperature Range of Readout:
-10°C to 50°C
EMC Compliance:
EN61326:2006 Annex CCISPR II, Edition 5.0-2009Class "B"
Humidity Range:
0 to 95% R.H. Non-condensing
Storage Temperature Range:
-20 to 60°C
Enclosure Rating:
IP50
Readout Temperature Coefficient:
Add ± 10ppm/°C of full scale temperature from -10°C to 18°C and 28°C to 50°C
Power:
3 AAA alkaline batteries (Must use only approved batteries see section 4)
Battery Life:
Approximately 300 hours without back light
SHIPPED PRODUCT INCLUDES:
NIST traceable certificate of calibration
Probe
Rugged, zippered, carrying case
Owners Manual
Batteries
