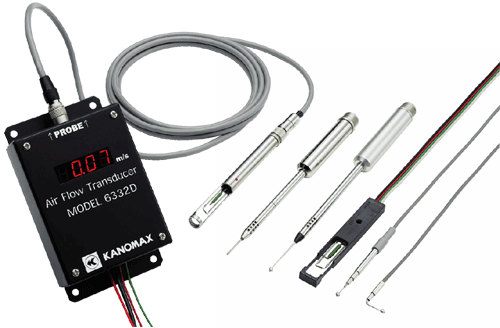

Kanomax Airflow Transducer Model 6332D
|
|
Item Is In Stock
|
|
|
|
|
Product Line Quality
Control
PCB Temperature Monitoring
Quality Control monitoring and
controlling
Combined with thermo graphic system,
air velocity and distribution during
drying/
measure air velocity across the board
shaping
process.
to evaluate the cooling efficiency.
(Photo provided by NEC San-ei Instruments, Ltd.)
Air Velocity Monitor for
Local
Residential Air Ventilation Monitoring
Exhaust
Ventilation and FFU
Ensure ventilation system efficiency by
(Fan
Filter Unit)
actively monitoring system balance
Prevent exposure of
hazardous
and controlling airflow.
materials to workers and prevent
leakage by thorough monitoring
and control of chamber airflow.
|
Features
- 10 interchangeable probe options
- Probes quickly and easily attach/detach
- Digital Display Option (model 6332D)
- Selectable Output (Output can be set to
either voltage (0 to 5V) or current (4 to 20mA))
|
Main
Unit Specifications
|
Product Name
|
Airflow Transducer (with/without
Display)
|
|
Model
|
6332 /
6332D
|
|
Measuring
Object
|
Clean
air and compatible, non-combustible gases
|
|
Measuring
Range
|
Maximum
range 0.1 ~ 50 m/s
(Range dependant on probe type*)
|
|
Measuring Accuracy
|
± (3% of reading + 0.1) m/s
|
|
Temperature Compensation Range
|
|
0.1-4.99m/s
|
5.00-9.99m/s
|
10.0-24.9m/s
|
25.0-50.0m/s
|
|
5~40°C
|
±0.25m/s
|
±0.50m/s
|
±1.25m/s
|
±2.50m/s
|
|
40~80°C
|
±0.35m/s
|
±0.70m/s
|
±1.75m/s
|
±3.50m/s
|
|
Selectable Output Option
|
(Set via
onboard DIPswitch).
Current output: DC 4~20mA (Max. load
resistance: 250Ω)
Voltage output: DC 0~5V
|
|
Selectable Range Option
|
(Rotary Switch selectable).
0~2, 0~5,
0~10, 0~25, or 0~50 m/s
|
|
Display Resolution (Model 6332D only)
|
Velocity Range: 0~2, 0~5, 0~10 m/s → Display
Resolution: 0.01m/s
Velocity
Range: 0~25, 0~50 m/s → Display Resolution:
0.1m/s
|
|
Power Supply
|
DC 12~24V
|
|
Power Consumption (Reference Value)
|
Approx.
2.0W (Under the following conditions - power supply: 12V, air velocity:
approx. 10m/s, using a unit with a display with probe model
0965-03.)
Power
consumption rate is subject to change according to conditions such as
air velocity, probe type and use of display.
|
|
Connection Wire Size
|
0.5 ~ 1.5 mm2
|
|
Operating Temperature Range
|
5 ~ 40°C
|
|
Storage
Temperature Range
|
-10 ~ 50°C
|
|
Dimensions
|
Approx.
128(W)×78(D)×30(H) mm
|
|
Weight
|
Approx.
320g (11oz.)
|
|
Standard Accessory
|
Operation
Manual : 1, Main Unit Case: 1
|
|
Optional Accessory
|
Probe Cable
(10m, 20m, 30m), Display Unit (Supplied with a case with a display
window and 2 installation screws.), Dedicated AC Adapter (DC12V)
|
Probe Specifications
|
MODEL
|
Measuring
Range
|
Sensor Type
|
|
0962-00,
0963-00
|
0.1~50.0m/s
|
Uni-directional
|
|
0964-01,
0964-02
|
Omni-directional
(Needle)
|
|
0965-00,
0965-01
|
0.1~25.0m/s
|
Omni-directional
(Spherical)
|
|
0965-03,
0965-04
|
0.1~25.0m/s
|
Mini-temperature-compensation-sensor
integrated type
Omni-directional
(Spherical)
|
|
0965-07, 0965-08
|
Mini-temperature-compensation-sensor independent type
Omni-directional
(Spherical)
|
|
|
|
|
