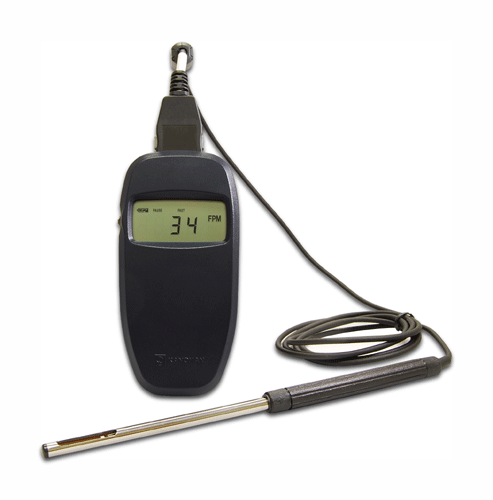

Kanomax A004 Handheld Anemometer
|
|
Item Is In Stock
|
Anemomaster Model A004
Palm-size Hotwire Anemometer :
Applications
- HVAC Ventilation Testing and Balancing
- Laboratory Control
- Flow Hood Performance Testing
- IAQ Investigation
- Industrial Hygiene Quality Control
Features
- Broad measurement range
- Detachable probe for zero downtime calibration or replacement
- Temperature compensation circuit for high accuracy
- Display readings in both metric and imperial units
Benefits
- Compact and extremely durable
- Low Price, Kanomax quality throughout
- Highly accurate, long-life Platinum sensor
- Single button multi-function switch for easy one-hand operation of power on/off, set time constant, read temperature, hold result
Probe Dimensions
|

|
Specifications
|
|
|
Range
|
20 to 3,940 fpm (0.10 to 20.0m/s)
|
Accuracy
|
+/-3% of reading or +/-3 fpm (+/-0.015m/s) whichever is greater
|
Response Time
|
Less than 1second at 196 fpm (1m/sec), 90% response
|
Resolution
|
0.01 m/s (@0 to 9.99 m/s)
0.1 m/sec (@10.0 to 20.0 m/s)
|
Air Temperature
|
Range
|
32 - 122 F (0-50 C)
|
Accuracy
|
+/- 2 F (1 C)
|
Response Time
|
Less than 30 seconds at 196 fpm (1 m/sec), 90% response
|
Resolution
|
1 F (0.1 C)
|
| Power
|
Supply
|
4 x AA Battery
|
Battery Life
|
Approx. 4 hrs. continuous at air velocity 196 fpm (1 m/s) with Mn batteries
|
Operating
Environment
|
Main unit
|
41 to 104F (5 to 40C)
|
Probe
|
32 to 122F (0 to 50C)
|
Storing Environment
|
14-122 F (-10 to 50C)
|
| Dimensions
|
Main unit
|
2.4"(60mm) x 4.7"(120mm) x 1.2"(30mm)
|
Probe
|
Probe: 0.24" or 0.40"(6 or 10mm) diameter x 7.9"(200mm) length.
Probe cable: 0.13"(3.3mm) diameter x 59"(1,500mm) length.
|
| Weight
|
0.4 lbs (180 g) including batteries
|
| Accessories
|
Operation Manual, AA batteries
|
| Options
|
Spare Probe, Extension Rod, Carrying Case
|
|
|
Hard Carrying Case for Kanomax A004 Anemometer.
|
Replacement Probe for Kanomax A004 Anemometer.
| |
|
|
