Additel ADT 160A Intelligent Digital Pressure Modules

<< Previous in Calibrators Next in Calibrators >>

Price: See Individual Prices
Item Is In Stock
Item Number: ADT160A
Manufacturer: ADDITEL

Options

Gauge Pressure
Absolute Pressure
Barometric Pressure 60kPa to 120kPa, accuracy 40 Pa
Compound Pressure
Differential Pressure
Certification Options
Accessories

Additel ADT 160A Intelligent Digital Pressure Modules


OVERVIEW


With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the Additel 160A series Intelligent Digital Pressure Module (IDPM) provides an accurate, reliable, and economic solution for wide range of pressure applications. It is loaded with functionality and remarkably easy to use. In order to reach the best performance, every silicon pressure sensor in the module has been specially aged, tested and screened before assembly. Designed as external pressure module for Additel 761 automated pressure calibrator and Additel 222A, Additel 223A  and Additel 761 calibrators, the Additel 160A IDPM is unmatched in performance and reliability.


GENERAL FEATURES

• Gauge pressure measurement accuracy of 0.02% FS
  Absolute Pressure measurement accuracy of 0.1% FS

• Pressure ranges to 10,000 psi (700 bar)

• Advanced temperature compensation

• NIST traceable calibration and data included


APPLICATIONS

The 160A series Digital Pressure Modules (IDPM) are specially designed as external pressure module for 761 automated pressure calibrator, 222A Multifunction Process Calibrators and 223A Documenting Process Calibrators.


SPECIFICATIONS


• Environmental
  Compensated Temperature: 14°F to 12°F(-10°C to 50°C )
  Operating Temperature*: 14F to 122F(-10C to 50C )
  *0.02%FS accuracy guaranteed only over the ambient temperature range of 68°F to 79°F (20°C to 26°C)
  Storage Temperature: -4°F to 158°F (-20°C to 70°C )
  Humidity: <95%

• Pressure Connections
  1/4NPT male, 1/4BSP male, M20X1.5 male
  Other Connections available per request

• Enclosure
  Case material: SST
  Wetted parts: 316L SS
  Dimension: Ø1.3" x 4.84" (Ø33mm x 123mm)
  Weight: 0.99 lb (0.4kg)

• Warranty: 1 Year

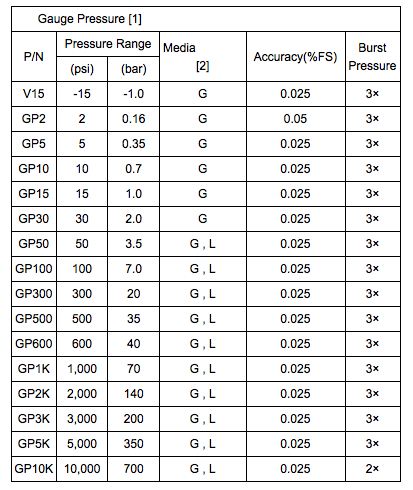

• Pressure Range and Accuracy


Note:
[1]. Sealed gauge pressure for above 1000 psi
[2]. G=Gas, L=Liquid

•   General Specifications







• ORDERING INFORMATION:

       Model Number: ADT160A



View the Data/Spec Sheet. Don't have Reader?
