9142/9143/9144 - Field Metrology Wells

<< Previous in Dry Wells Next in Dry Wells >>

Price: From $5,020.00 to $8,000.00
Manufacturer: FLUKE/HART SCIENTIFIC
Mfr. Part Number: 9142/9143/9144

Choose Your Model

Model:

Options

Optional Cases for 9142
Additional Inserts (Optional)

Features
    * Lightweight, portable, and fast
    * Cool to –25 °C in 15 minutes and heat to 660 °C in 15 minutes
    * Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current
    * True reference thermometry with accuracy to ± 0.01 °C
    * On-board automation and documentation
    * Metrology performance in accuracy, stability, uniformity, and loading

Field Metrology Wells are packed with functionality and are remarkably easy to use. They are lightweight, small, and quick to reach temperature set points, yet they are stable, uniform, and accurate. These industrial temperature loop calibrators are perfect for performing transmitter loop calibrations, comparison calibrations, or simple checks of thermocouple sensors. With the “process” option, there is no need to carry additional tools into the field. This optional built-in two-channel readout reads resistance, voltage, and 4–20 mA current with 24 volt loop power. It also has on-board documentation. Combined, the three models (9142, 9143, and 9144—each with a “process” option) cover the wide range of –25 °C to 660 °C.

High performance for the industrial environment
Field Metrology Wells are designed for the industrial process environment. They weigh less than 8.2 kg (18 lb) and have a small footprint, which makes them easy to transport. Optimized for speed, Field Metrology Wells cool to –25 °C in 15 minutes and heat to 660 °C in 15 minutes.

Field environment conditions are typically unstable, having wide temperature variations. Each Field Metrology Well has a built-in gradient-temperature compensation (patent pending) that adjusts control characteristics to ensure stable performance in unstable environments. In fact, all specifications are guaranteed over the
environmental range of 13 °C to 33 °C.

Built-in features to address large workloads and common applications
Whether you need to calibrate 4-20 mA transmitters or a simple thermostatic switch, a Field Metrology Well is the right tool for the job. With three models covering the range of –25 °C to 660 °C, this family of Metrology Wells calibrates a wide range of sensor types. The optional process version (models 914X-X-P) provides a built-in two-channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20 mA transmitters which includes the 24 V loop supply to power the transmitter.

Each process version accepts an ITS-90 reference PRT. The built-in readout accuracy ranges from ± 0.01 °C to ± 0.07 °C depending on the measured temperature. Reference PRTs for Field Metrology Wells contain individual calibration constants that reside in a memory chip located inside the sensor housing, so sensors may be used interchangeably. The second channel is user-selectable for 2-, 3-, or 4-wire RTDs, thermocouples, or 4-20 mA transmitters. For comparison calibration, don’t hassle with carrying multiple instruments to the field. Field Metrology Wells do it all as a single instrument.

Traditionally, calibrations of temperature transmitters have been performed on the measurement electronics, while the sensor remained uncalibrated. Studies have shown, however, that typically 75 % of the error in the transmitter system (transmitter electronics and temperature sensor) is in the sensing element. Thus, it becomes important to calibrate the whole loop—both electronics and sensor.

The process option of Field Metrology Wells makes transmitter loop calibrations easy. The transmitter sensor is placed in the well with the reference PRT and the transmitter electronics are connected to the front panel of the instrument. With 24 V loop power, you are able to power and measure the transmitter current while sourcing and measuring temperature in the Field Metrology Well. This allows for the measurement of as-found and as-left data in one self-contained calibration tool.

All Field Metrology Wells allow for two types of automated thermostatic switch test procedures—auto or manual setup. Auto setup requires the entry of only the nominal switch temperature. With this entry, it will run a 3-cycle calibration procedure and provide final results for the dead band temperature via the display. If you need to customize the ramp rate or run additional cycles, the manual setup allows you to program and run the procedure exactly how you would like. Both methods are fast and easy and make testing temperature switches a virtual joy!

Metrology performance for high-accuracy measurements
Unlike traditional dry-wells, Field Metrology Wells maximize speed and portability without compromising the six key metrology performance criteria laid out by the EA: accuracy, stability, axial (vertical) uniformity, radial (well-to-well) uniformity, loading, and hysteresis. All criteria are important in ensuring accurate measurements in all calibration applications.

Field Metrology Well displays are calibrated with high-quality traceable and accredited PRTs. Each device (process and non-process versions) comes with an IEC-17025 NVLAP-accredited calibration certificate, which is backed by a robust uncertainty analysis that considers temperature gradients, loading effects, and hysteresis. The 9142 and 9143 have a display accuracy of ± 0.2 °C over their full range, and the 9144 display accuracy ranges from ± 0.35 °C at 420 °C to ± 0.5 °C at ± 660 °C. Each calibration is backed with a 4:1 test uncertainty ratio.

New control technology guarantees excellent performance in extreme environmental conditions. The 9142 is stable to ± 0.01 °C over its full range and the mid-range 9143 is stable from ± 0.02 °C at 33 °C and ± 0.03 °C at 350 °C. Even at 660 °C, the 9144 is stable to ± 0.05 °C. But this is not all! Thermal block characteristics provide radial (well-to-well) uniformity performance to ± 0.01 °C. Dual-zone control helps these tools achieve axial uniformity to ± 0.05 °C at 40 mm (1.6 in).

Automation and documentation make each unit a turnkey solution
So you now have a precision calibration instrument that has field-ready characteristics, accredited metrology performance, built-in two-channel thermometry, and automation—what else could you ask for? How about all this and a turnkey solution that will automate and document the results?

The process versions of Field Metrology Wells have on-board non-volatile memory for documentation of up to 20 tests. Each test can be given a unique alphanumeric ID and will record block temperature, reference temperature, UUT values, error, date, and time. Each test can be easily viewed via the front panel or exported using Model 9930 Interface-it software, which is included with each shipment. Interface-it allows you to pull the raw data into a calibration report or an ASCII file.

Base Unit Specifications


9142

9143

9144

Temperature Range at 23 °C

–25 °C to 150 °C
(–13 °F to 302 °F)

33 °C to 350 °C
(91 °F to 662 °F)

50 °C to 660 °C
(122 °F to 1220 °F)

Display Accuracy

± 0.2 °C Full Range

± 0.2 °C Full Range

± 0.35 °C at 50 °C
± 0.35 °C at 420 °C
± 0.5 °C at 660 °C

Stability

± 0.01 °C Full Range

± 0.02 °C at 33 °C
± 0.02 °C at 200 °C
± 0.03 °C at 350 °C

± 0.03 °C at 50 °C
± 0.05 °C at 420 °C
± 0.05 °C at 660 °C

Axial Uniformity at 40 mm (1.6 in)

± 0.05 °C Full Range

± 0.04 °C at 33 °C
± 0.1 °C at 200 °C
± 0.2 °C at 350 °C

± 0.05 °C at 50 °C
± 0.35 °C at 420 °C
± 0.5 °C at 660 °C

Radial Uniformity

± 0.01 °C Full Range

± 0.01 °C at 33 °C
± 0.015 °C at 200 °C
± 0.02 °C at 350 °C

± 0.02 °C at 50 °C
± 0.05 °C at 420 °C
± 0.10 °C at 660 °C

Loading Effect (with a 6.35 mm reference probe and three 6.35 mm probes)

± 0.006 °C Full Range

± 0.015 °C Full Range

± 0.015 °C at 50 °C
± 0.025 °C at 420 °C
± 0.035 °C at 660 °C

Hysteresis

0.025 °C

0.03 °C

0.1 °C

Operating Conditions

0 °C to 50 °C, 0 % to 90 % RH (non-condensing)

Environmental Conditions (for all specifications except temperature range)

13 °C to 33 °C

Immersion (Well) Depth

150 mm (5.9 in)

Insert OD

30 mm (1.18 in)

25.3 mm (1.00 in)

24.4 mm (0.96 in)

Heating Time

16 min: 23 °C to 140 °C
23 min: 23 °C to 150 °C
25 min: –25 °C to 150 °C

5 min: 33 °C to 350 °C

15 min: 50 °C to 660 °C

Cooling Time

15 min: 23 °C to –25 °C
25 min: 150 °C to –23 °C

32 min: 350 °C to 33 °C
14 min: 350 °C to 100 °C

35 min: 660 °C to 50 °C
25 min: 660 °C to 100 °C

Resolution

0.01 °

Display

LCD, °C or °F user-selectable

Size (H x W x D)

290 mm x 185 mm x 295 mm (11.4 x 7.3 x 11.6 in)

Weight

8.16 kg (18 lb)

7.3 kg (16 lb)

7.7 kg (17 lb)

Power Requirements

100 V to 115 V (± 10 %) 50/60 Hz, 635 W
230 V (± 10 %) 50/60 Hz, 575 W

100 V to 115 V (± 10 %), 50/60 Hz, 1400 W
230 V (± 10 %), 50/60 Hz, 1800 W

Computer Interface

RS-232 and 9930 Interface-it control software included



Ordering Information for 9142

9142-X

Field Metrology Well, –25 °C to 150 °C, w/9142-INSX

9142-X-P

Field Metrology Well, –25 °C to 150 °C, w/9142-INSX, w/Process Electronics

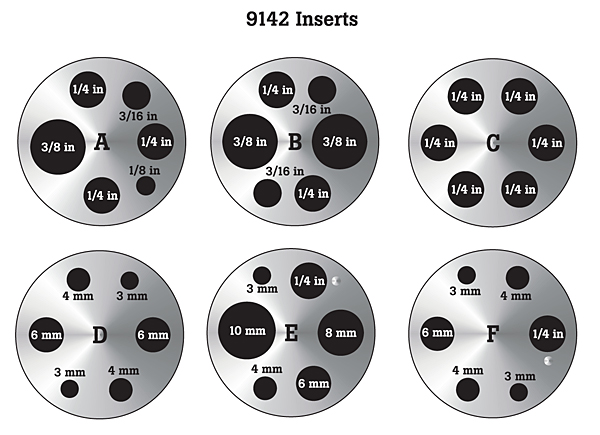

X in the above model numbers to be replaced with A, B, C, D, E, or F as appropriate for the desired insert. See the inserts illustration and listing below.

9142-INSA

Insert “A” 9142, Imperial Misc Holes

9142-INSB

Insert “B” 9142, Imperial Comparison Holes

9142-INSC

Insert “C” 9142, 0.25-inch Holes

9142-INSD

Insert “D” 9142, Metric Comparison Holes

9142-INSE

Insert “E” 9142, Metric Misc Holes w/0.25-inch Hole

9142-INSF

Insert “F” 9142, Metric Comparison Misc Holes w/0.25-inch Hole

9142-INSZ

Insert “Z” 9142, Blank



Ordering Information for 9143

9143-X

Field Metrology Well, 33 °C to 350 °C, w/9143-INSX

9143-X-P

Field Metrology Well, 33 °C to 350 °C, w/9143-INSX, w/Process Electronics

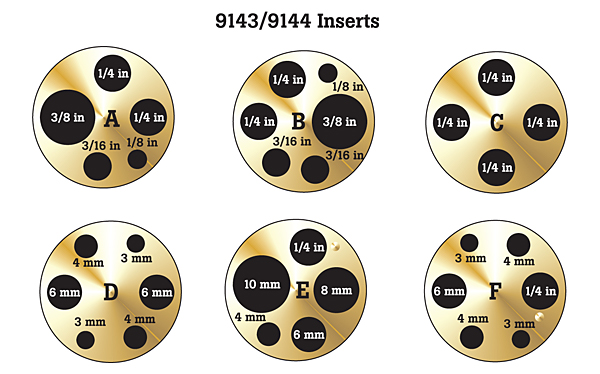

X in the above model numbers to be replaced with A, B, C, D, E, or F as appropriate for the desired insert. See the inserts illustration and listing below.

9143-INSA

Insert “A” 9143, Imperial Misc Holes

9143-INSB

Insert “B” 9143, Imperial Comparison Holes

9143-INSC

Insert “C” 9143, 0.25-inch Holes

9143-INSD

Insert “D” 9143, Metric Comparison Holes

9143-INSE

Insert “E” 9143, Metric Misc Holes w/0.25-inch Hole

9143-INSF

Insert “F” 9143, Metric Comparison Misc Holes w/0.25-inch Hole

9143-INSZ

Insert “Z” 9143, Blank



Ordering Information for 9144

9144-X

Field Metrology Well, 50 °C to 660 °C, w/9144-INSX

9144-X-P

Field Metrology Well, 50 °C to 660 °C, w/9144-INSX,
w/Process Electronics

X in the above model numbers to be replaced with A, B, C, D, E, or F as appropriate for the desired insert. See the inserts illustration and listing below.

9144-INSA

Insert “A” 9144, Imperial Misc Holes

9144-INSB

Insert “B” 9144, Imperial Comparison Holes

9144-INSC

Insert “C” 9144, 0.25-inch Holes

9144-INSD

Insert “D” 9144, Metric Comparison Holes

9144-INSE

Insert “E” 9144, Metric Misc Holes w/0.25-inch Hole

9144-INSF

Insert “F” 9144, Metric Comparison Misc Holes w/0.25-inch Hole

9144-INSZ

Insert “Z” 9144, Blank
