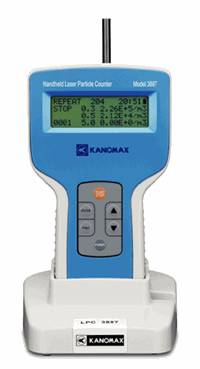

Kanomax 3887 Handheld Particle Counter
|
|
Item Is In Stock
|
Kanomax handheld particle counters are designed for cleanroom certifications. The Model 3887 3-channel particle counter is CE certified and ensures compliance with industry standards, such as ISO 14644-1. It is also perfect for initial assessment of indoor particulate levels and provides instant, repeatable levels of toxic parameters, VOCs and particulates.
Applications
- Cleanroom Verification / Monitoring
- Clean Bench Verification
- IAQ Investigation
- Food Process Investigation
- Hospital Surgical Room
- Filter Testing
Features
- 0.3, 0.5, and 5.0 um sensitivity
- Built-in flow sensor (0.1 CFM +/- 10%)
- Network capable up to 8 units using Windows software
Specifications
Measuring Particle Size
|
0.3um, 0.5um, 5.0um
|
| Flow Rate
|
0.1 cfm (2.83 l/min)
|
| Light Source
|
Laser Diode
|
| Calibration
|
PSL particles in air
|
| Counting Efficiency
|
50% at 0.3 um; 100% for particles > 0.45 um (ISO 21501-4)
|
| Zero Count
|
Less than 1 count / 5 minutes (ISO 21501-4)
|
| Coincidental Loss
|
Less than 5% at 2,000,000 particles/cf
|
| Sampling Time
|
1 sec - 99 min 59 sec (1 second increment)
|
Sampling Frequency
|
1 - 99 or continuous
|
| Count Modes
|
Single, Repeat, Continuous, Calculation, Remote and ISO mode
|
| Display
|
LCD: 20 letters, 4 lines
|
| Interface
|
RS232C or RS485
|
| Baud Rate
|
9600 bps
|
| Buffer Memory
|
8,000 sample records
|
| Power
|
AC Adapter
|
5VDC at 2.5A, 100 - 240VAC, 50 to 60 Hz
|
| Battery
|
4 x AA Battery
|
Operating Time
|
3 hrs with 1600mAh Batteries
|
| Vacuum Source
|
Internal pump, flow controlled
|
| Dimensions
|
W 4.3 x D 2.7 x H 7.7 inch (108 x 68 x 196 mm)
|
| Weight
|
1.5 lbs (680 g)
|
Accessories
|
Isokinetic Probe, AC Adapter, Zero Filter, Battery & Charger
Utility Software, Communication Cable
|
| Options
|
Thermal Printer, Printer Cable, Carrying Case, Tripod
|
|
|
|
|
|
