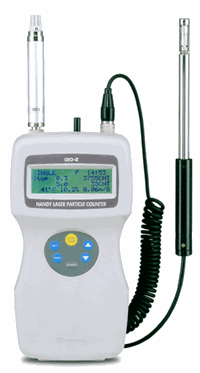

Kanomax 3886 Handheld Particle Counter
|
|
Item Is In Stock
Item Number: 3886 GEO-α
Options
Optional Add-Ons / Accessories
|
Kanomax handheld particle counters are designed for cleanroom certifications. The Model 3886 measures 5 particle sizes simultaneously with optional multi-functions, such as air velocity, temperature, and humidity. Its low air velocity measuring function is suitable for laminar flow units.
Applications
- Cleanroom verification
- Clean Bench verification
- IAQ Investigation
- Food Process Investigation
- Hospital Surgical Room
- Filter Testing
Features
- Measures 5 particle sizes; 0.3, 0.5, 1.0, 3.0 and 5.0 um in cf or m3
- Built-in flow sensor (0.1 CFM +/- 10%)
- Optional Temp./RH and Air Velocity probes available
- Capable of measuring up to 4 parameters in one instrument
|
Probe
|
 |
 |
| Air Velocity Probe |
Temperature and Relative Humidity Probe |
| Air Velocity range: 0 to 197 fpm (0 to 1.0m/s) |
Temperature Range: 32.0 to 122.0F (0.0 to 50.0C)
R/H Range: 3.0 to 98.0%RH |
|
|
Specifications
|
Channel Sizes
|
0.3 um, 0.5 um, 1.0 um, 3.0 um, 5.0um |
| Flow Rate |
0.1 cfm (2.83 l/min) |
| Light Source |
Laser Diode
|
| Calibration |
PSL particles in air
|
| Counting Efficiency |
50% at 0.3 um; 100% for particles > 0.45 um (ISO 21501-4)
|
| Zero Count |
Less than 1 count / 5 minutes (ISO 21501-4)
|
| Coincidental Loss |
Less than 5% at 2,000,000 particles/cf
|
| Sampling Time |
1 sec - 99 min 59 sec (1 second increment)
|
Sampling Frequency
|
1 - 99 or continuous
|
| Count Modes |
Single, Repeat, Continuous, Calculation and Remote mode
|
| Display |
LCD: 20 letters, 4 lines
|
| Interface |
RS232C or RS485
|
| Baud Rate |
9600 bps
|
| Buffer Memory |
500 sample records |
| Power |
AC Adapter |
5VDC at 2.5A, 100 - 240VAC, 50 to 60 Hz |
| Battery |
4 x AA Battery |
Operating Time
|
3.5 hrs with 1600mAh Batteries |
| Vacuum Source |
Internal pump, flow controlled |
| Dimensions |
W 4.5 x D 2.8 x H 8.5 inch (115 x 70 x 211 mm) |
| Weight |
2.2 lbs (1 kg) |
| Accessories |
AC Adapter, Zero Filter |
| Options |
Isokinetic Probe, Air Velocity Probe, Thermal Printer,
Temperature/Relative Humidity Probe, Carrying Case
|
|
|
|
Tripod for Kanomax Particle Counter 3886 & 3887
| | |
|
|
